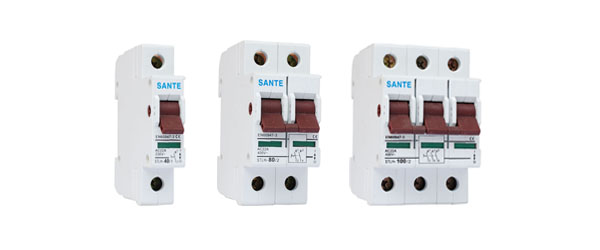

| STLH-100 isolating switch |
|
|
Application scope↓
For use as switch disconnectors in all types of circuit as difined in the 16th Edition of the IEE Wiring regulations.
Standard↓
IEC60947-3 |
|
Type |
STLH-100 |
|
Number of poles |
1P、2P、3P、4P |
|
Rated Current(In) |
16、25、40、63、80、100A |
|
Rated Voltage(Un) |
AC 230(240)/400(415)V |
|
Frequency |
50(60)Hz |
|
Short-circuit capacity(Icn) |
3000A |
|
Endurance |
≥ 10000 |
|
Protection degree |
IP20 | |
·Circumstance temperature -5°C~ +40°C, average temperature not exceeding 35°C.
·Altitude above sea level less than 2000 m.
·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
·Installation class II or III.
·Pollution class 2.
·Installation method DIN Rail mounting type.
·The external magnetism shall not be more than 5 times of terrestrial one.
·Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position. |
| The product, used as main switch in terminal electric installations, is applicable to power distribution circuit with rated voltage up to 400V AC and rated frequency 50/60Hz. The product is featured highly stable against abnormal heating and equipped with “on-off” status indicator. |
1.Minimum order quantity, time during the order to delivery;
2.Need to indicate type , specification , rated current , number of poles, quantity of the products while ordering. |
1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation. |
|
|
|
| |
|
|
