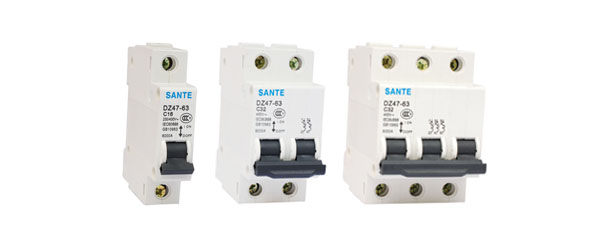

| DZ47-63(NEW)MCBⅠ |
|
|
Application scope↓
DZ47-63 MCB Protection and control of circuit against overload and short circuit,In building installation-such as houses,offices,commercial complex,motor system(D curve) and industrial installation-for switching ,control,protection and regulation of electrical circuits. Also in switchgear panels,railway and marine application.
Standard↓
IEC60898 |
|
| Type |
DZ47-63 MCB |
| Number of poles |
1P、1P+N、2P、3P、3P+N、4P |
| Rated Current(In) |
1、2、3、4、6、10、16、20、25、32、40、50、63A |
| Rated Voltage(Un) |
AC 230(240)/400(415)V |
| Rated frequency |
50(60)Hz |
| Curve |
B、C、D |
| Short-circuit breaking capacity(Icn) |
6000A |
| Magnetic releases operate |
B curve: between 3 and 5 In
C curve: between 5 and 10 In
D curve: between 10 and 14 In |
| Endurance |
≥ 4000 |
| Terminal protection |
IP20 | |
·Circumstance temperature -5°C~ +40°C, average temperature not exceeding 35°C.
·Altitude above sea level less than 2000 m.
·Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
·Installation class II or III.
·Pollution class 2.
·Installation method DIN Rail mounting type.
·The external magnetism shall not be more than 5 times of terrestrial one.
·Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position. | |
| The pass electric current characteristic of circuit breaker can not be changed with outside mechanical tool ;The accessory which made by ferrous metal should have proper antirusting measure ;The operating organization must be flexible and reliable, and should have freed function to take off and deduct; the Operate part can not be taken down from the shell outer of products,;the shell of product can not influence the operating organization to work. | |
1.Minimum order quantity, time during the order to delivery;
2.Need to indicate type , specification , rated current , number of poles, quantity of the products while ordering. | |
1.Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
2.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
3.The fast and flexible production form aim at the customer require;
4.The deliveries exactly in accordance with customer orders
5.The fast transportation.
6.Wide in variety, entire in specifications, has high short-circuit breaking capacity,can reach 6KA , it is aesthetic in appearance to design and convenient to install. | |
|
|
|
| |
|
|
